ANNIHILATOR
High-speed axis drive system for faster processing times

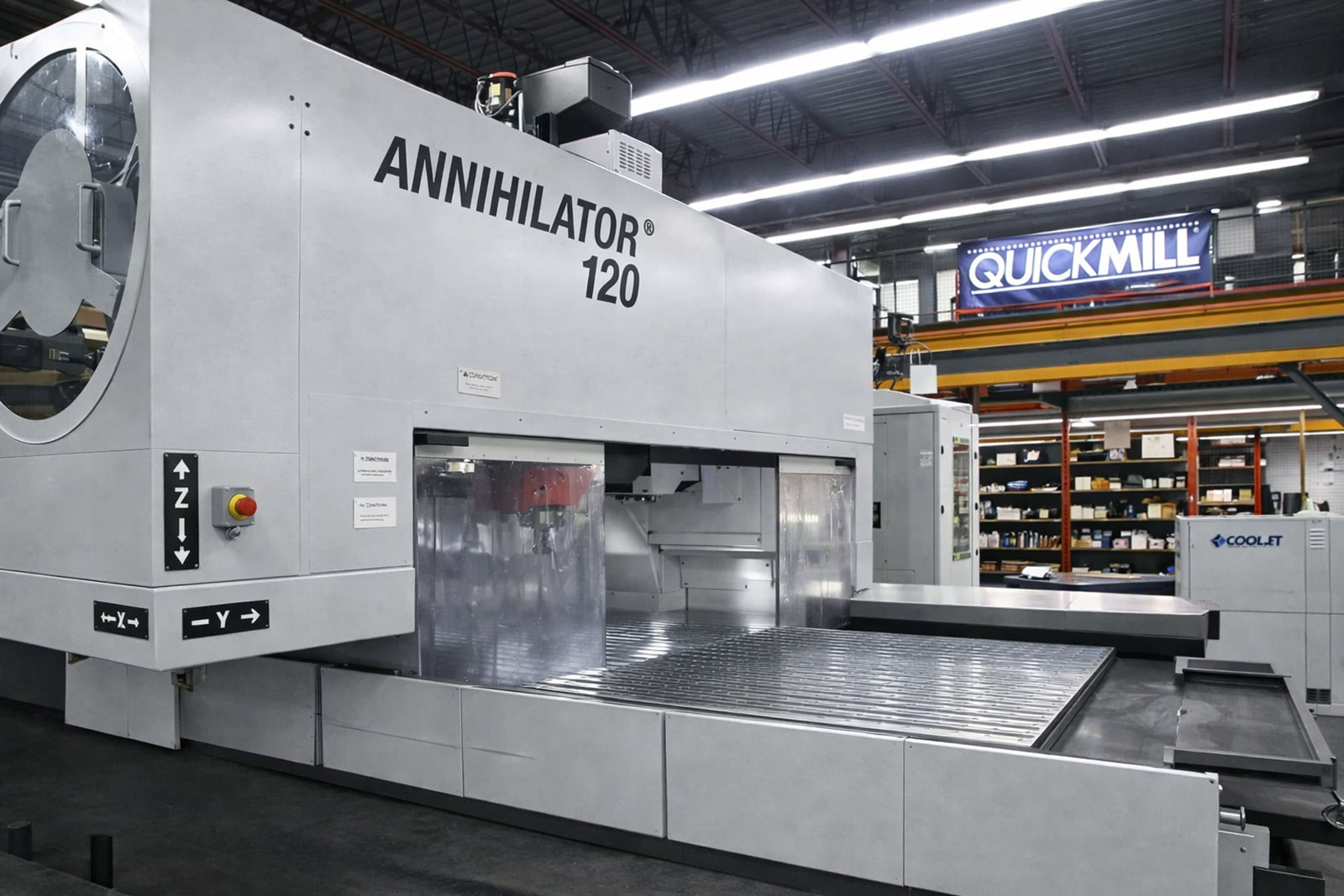

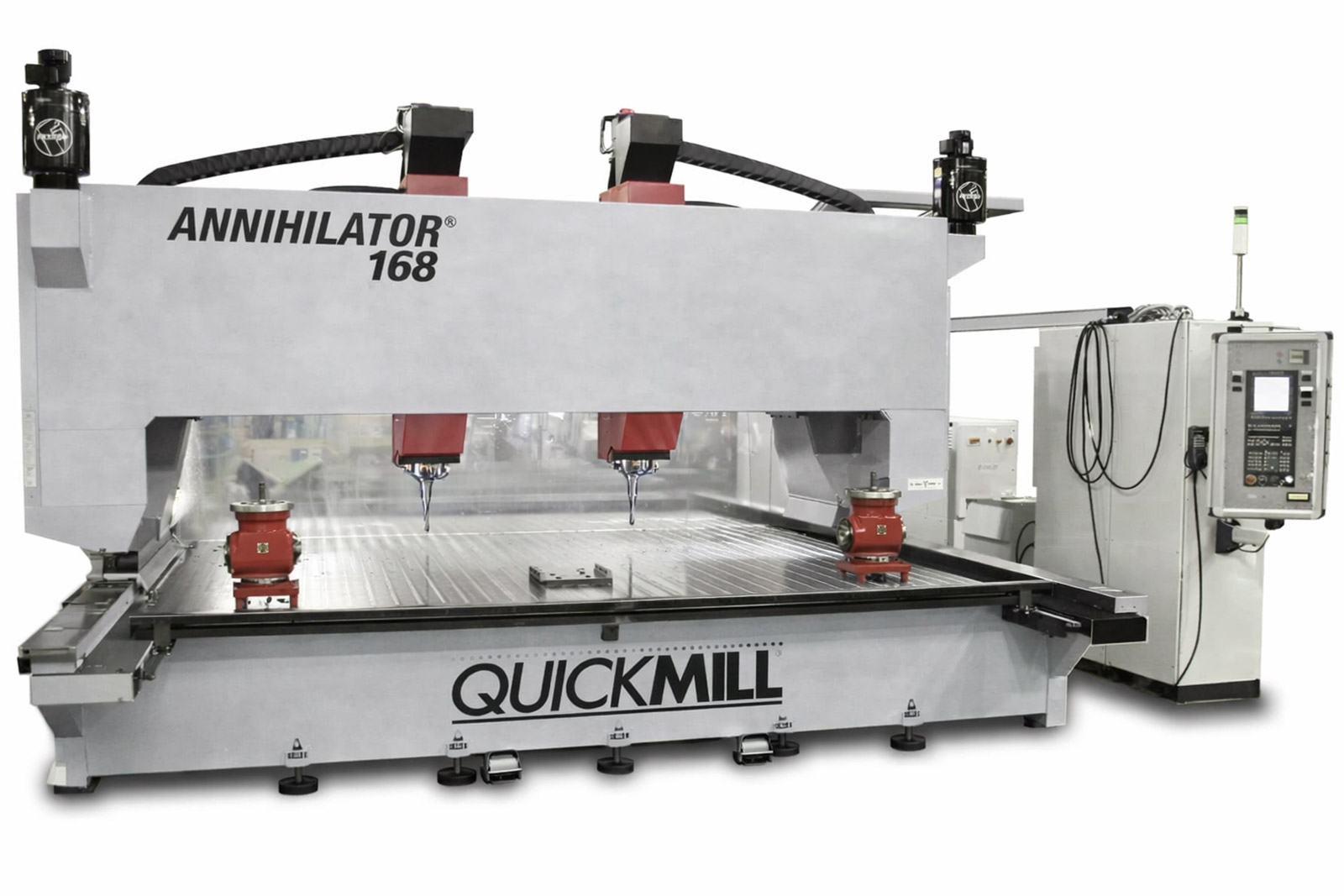

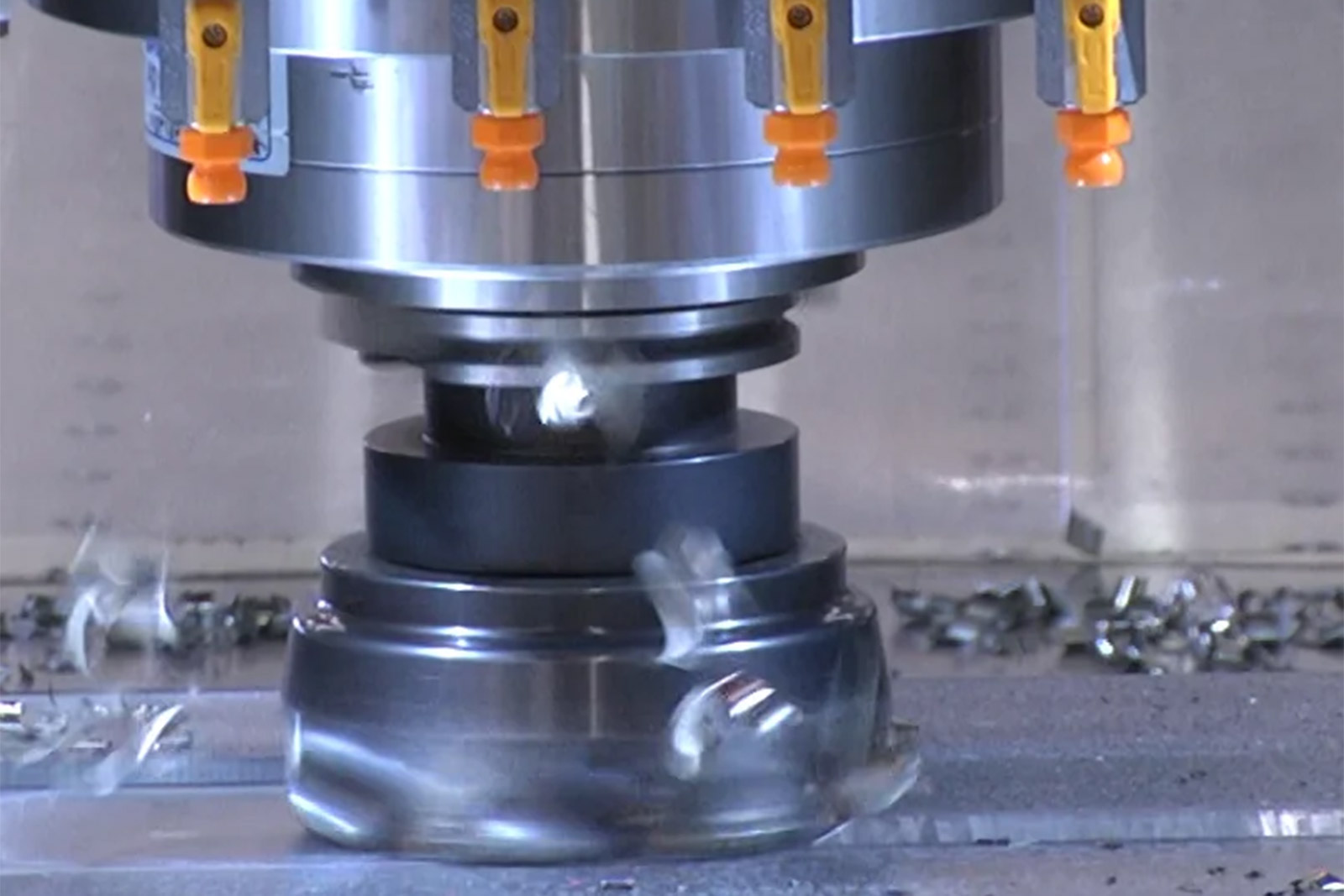

THE ANNIHILATOR GANTRY MACHINING CENTER
Rigid gantry design combined with Quickmill’s high-speed axis drive system allows for faster processing times. This CNC milling machine boasts a small footprint, easy-to-load table and is available in a variety of base sizes.
- Travel: 96” – 824” X Axis, 36” – 200” Y Axis, 26” Z Axis
- Spindle Speed – 0 – 8,000 rpm
- Main Drive Power 30 hp
- Optional 40 and 50 hp spindles available
- Right Angle Heads
Applications
- Aerospace
- Defense
- Oil & Gas
- Mold & Die
- Job Shop
Specifications
| Capacity | ||
|---|---|---|
| X-axis | 96-824" | 2,438-20,930 mm |
| Y axis | 36-200" | 914-5,080 mm |
| Z axis | 26" | 660 mm |
| Bridge gap | 30-36" | 762-914 mm |
| Spindle | ||
| Speed | 8,000 rpm | |
| Power S1 | 30 hp | 22 kW |
| Torque S1 | 413 ft-lb | 560 Nm |
| Taper | CAT50/ISO50/BP | |
| Type | 2 spd gearbox | |
| Feed | ||
| Max Feed (X & Y) up to | 945 ipm* | 24 m/min* |
| Max Rapid (X & Y) up to | 1,181 ipm* | 30 m/min* |
| Max Acceleration | 0.48 g | 3-5 m/s2 |
| Accuracy | ||
| Standard | Per ISO 230-2 | |
| Coolant | ||
| Flood | ✓ | |
| Through Spindle | ✓ | |
| Standard coolant system | 250 psi / 10 gpm | 17 bar / 38 lpm |
| Optional HP System | 1,000 psi / 15 gpm | 70 bar / 60 lpm |
| Tank capacity | 120-240 gal | 454-908 L |
| Control | ||
| CNC System | Fanuc or Siemens |
Additional power, sizes, features and accessories are available.
* table sizes up to 180″ X axis
Quickmill is recognized as a Fanuc Authorized CNC Integrator. We are proud to work with Fanuc America to identify and implement best-in-class practices for CNC integration on our machines.REQUEST A QUOTE
