Eliminator
Powerful metal cutting and increased throughput

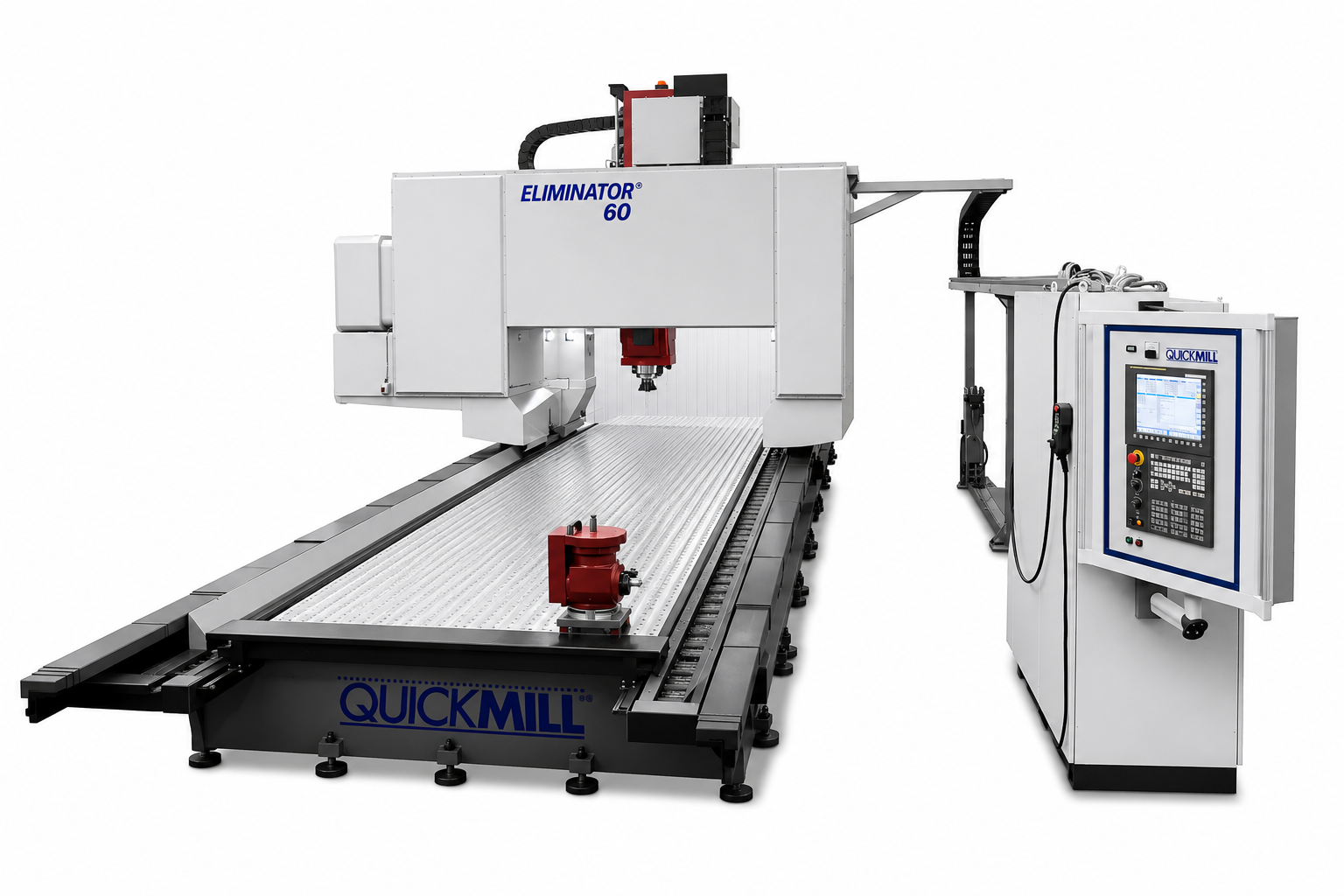

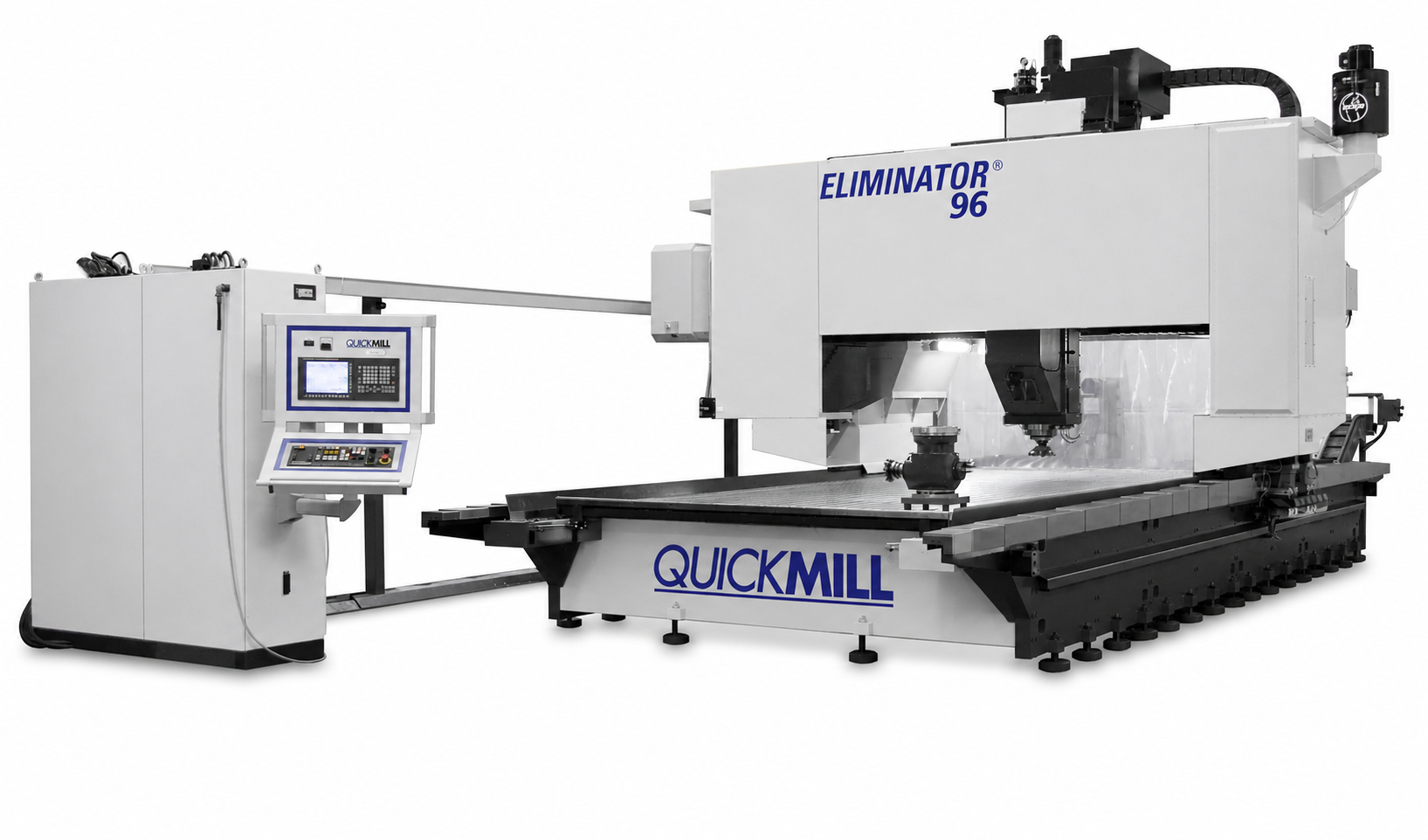

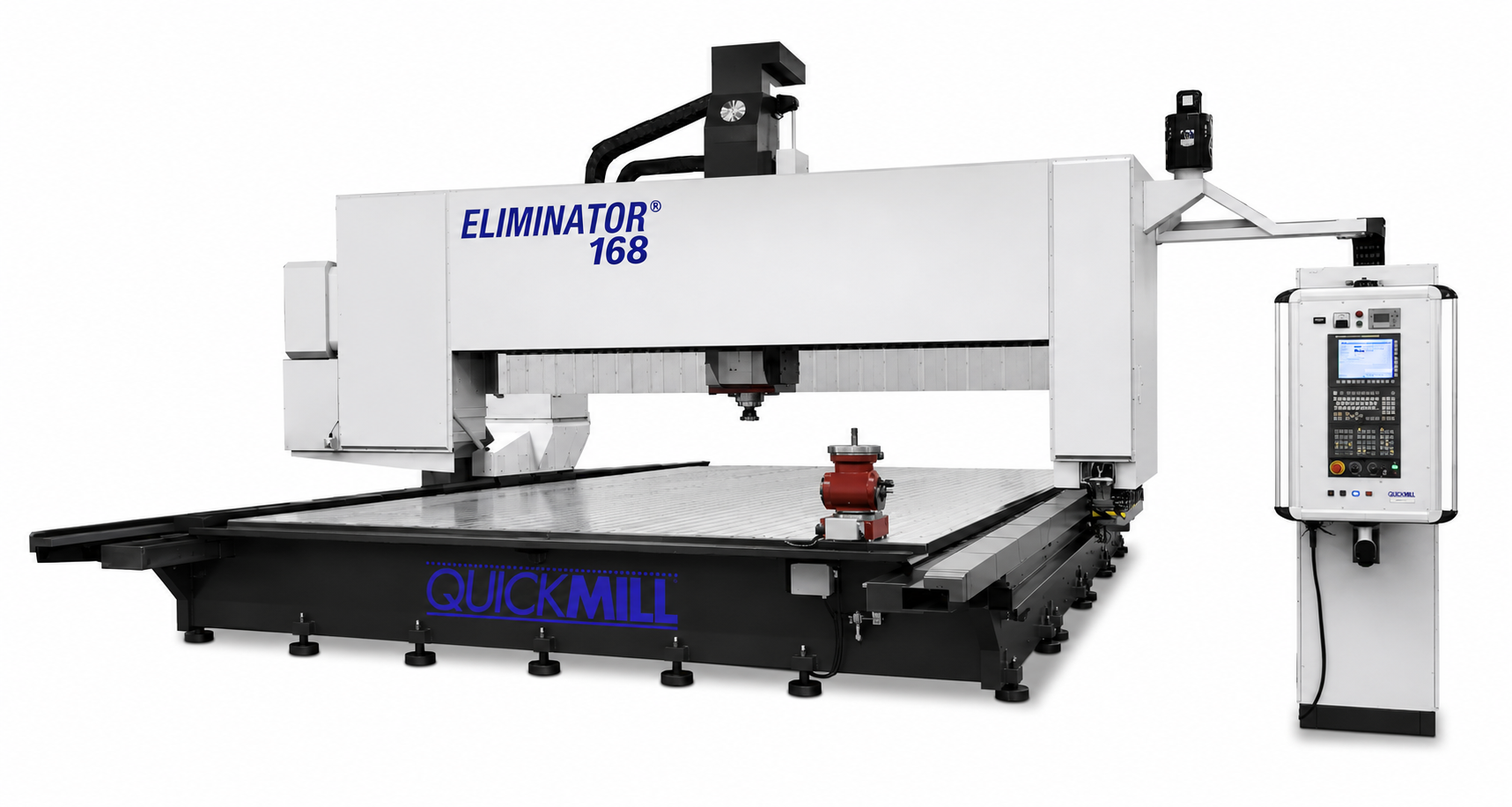

THE ELIMINATOR GANTRY MACHINING CENTER
Maximize throughput with Quickmill’s Eliminator CNC Machine that minimizes set-up time and powers through heavy milling parts. With versatile spindle options and multiple table configurations this machining center efficiently handles any large part machining needs.
- Travel: 96” – 817” X Axis, 36” – 200” Y Axis, 40” Z Axis
- Spindle Speed – 0 – 6,000 rpm
- Main Drive Power 40/49 hp
- 40 Tool Automatic Tool Changer
Applications
- Aerospace
- Defense
- Heavy Equipment
- Mold & Die
- Job Shop
Specifications
| Capacity | ||
|---|---|---|
| X-axis | 96 - 817" | 2,438 - 20,752 mm |
| Y axis | 36 - 200" | 914 - 5,080 mm |
| Z axis | 40" | 1,016 mm |
| Bridge gap | 42 - 60" | 1,067 - 1,542 mm |
| Spindle | ||
| Speed | 6,000 rpm | |
| Power S1 | 40 hp | 30 kW |
| Torque S1 | 735 ft-lb | 996 Nm |
| Taper | CAT50/ISO50 | |
| Type | 2 spd gearbox | |
| Feed | ||
| Max Feed (X & Y) up to | 720 ipm | 18 m/min |
| Max Rapid (X & Y) up to | 800 ipm | 20 m/min |
| Max Acceleration | 0.315 g | 3 m/s2 |
| Accuracy | ||
| Standard | Per ISO 230-2 | |
| Coolant | ||
| Flood | ✓ | |
| Through Spindle | ✓ | |
| Standard coolant system | 250 psi / 10 gpm | 17 bar / 38 lpm |
| Optional HP System | 1,000 psi / 15 gpm | 70 bar / 60 lpm |
| Tank capacity | 124 - 418 gal | 468 - 1,582 L |
| Control | ||
| CNC System | Fanuc or Siemens |
Additional power, sizes, features and accessories are available.
Quickmill is recognized as a Fanuc Authorized CNC Integrator. We are proud to work with Fanuc America to identify and implement best-in-class practices for CNC integration on our machines.REQUEST A QUOTE
Smart Machining Starts with Smart Conversations
If you are looking to increase your throughput, maximize floorspace or address other industrial machining solutions let’s talk about how a Quickmill machining center can help.
