FSW
PURPOSE-BUILD, HEAVY DUTY system for fRICTION STIR WELDING APPLICATIONS

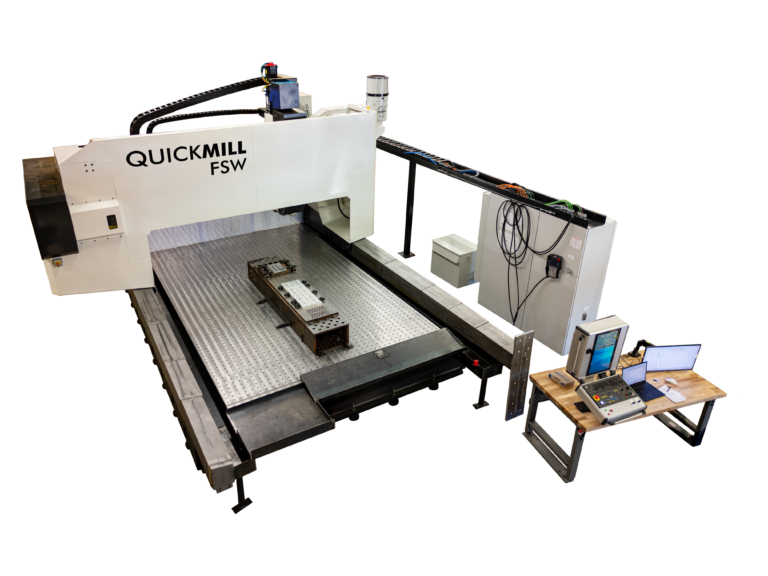

THE Quickmill FSW GANTRY MACHINING CENTER
Purpose-built, reinforced steel gantries provide the high rigidity required for heavy-duty Friction Stir Welding applications – delivering speed, capability and consistency. It produces 80 kN of FSW forging force, which translates to a weld depth of 38.1mm (1.5”) in aluminum and 6.35 mm (¼”) in steel. This platform increases the applications of FSW – thicker parts, harder metals and mixed materials.
The Quickmill FSW can be perform a full suite of machining applications and tasks. You can weld, then mill to clean up the parts on the same machine, same table and same setup, saving hours on jobs.
This moving gantry CNC milling machine boasts a small footprint, an easy-to-load table and is available in a variety of base sizes.
It is your all-in-one FSW machining center solution.
Y Axis: 96" - 200"
X Axis: 96" - 824"
Z Axis: 30 - 36"
Bridge Gap: 36" - 42"
Spindle Speed - up to 4,000 rpm
18,000 lbs (80kN of Z Axis Thrust
Main Drive Power 50 hp
High Torque X & Y access motors
Automatic or Manual Angle Heads
Dual 4K Camera Systems
Applications
Aerospace
Defense
Rail
FSW
Large EV
Specifications
Capacity
| X-axis | 96–824" | 2,438–20,930 mm |
| Y-axis | 36–200" | 914–5,080 mm |
| Z-axis | 30-36" | 762-914 mm |
| Bridge gap | 30–54" | 762–1371 mm |
Spindle - Standard
| Speed | 0-4,000 rpm | - |
| Power S1 | 50 hp | 37 kW |
| Torque S1 | 735ft-lb | 996 Nm |
| Power S6 | hp | kW |
| Torque S6 | ft-lb | Nm |
| Taper | CAT50 / BT50 / BP | - |
| Type | 4:1 2 speed gearbox | - |
Feed
| Max Feed (X & Y) up to | 945 ipm* | 24 m/min* |
| Max Rapid (X & Y) up to | 1,181 ipm* | 30 m/min* |
| Max Acceleration | 0.48 g | 3–5 m/s2 |
Accuracy
| Standard | Per ISO 230-2 |
Coolant
| Flood | ✔️ | - |
| Through Spindle | ✔️ | - |
| Standard Coolant System | 250 psi / 10 gpm | 17 bar / 38 lpm |
| Optional HP System | 1,000 psi / 15 gpm | 70 bar / 60 lpm |
| Tank Capacity | 120 - 240 gal | 454 - 908L |
Control
| CNC System | Fanuc or Siemens |
Additional power, sizes, features and accessories are available.
Request Product Information Brochure
Our machining centers are available in multiple table configurations to meet specific machining needs which is why so many industrial job shops and OEM manufacturers choose Quickmill for large scale machining production.
