Intimidator
Fast, efficient Large scale hole drilling

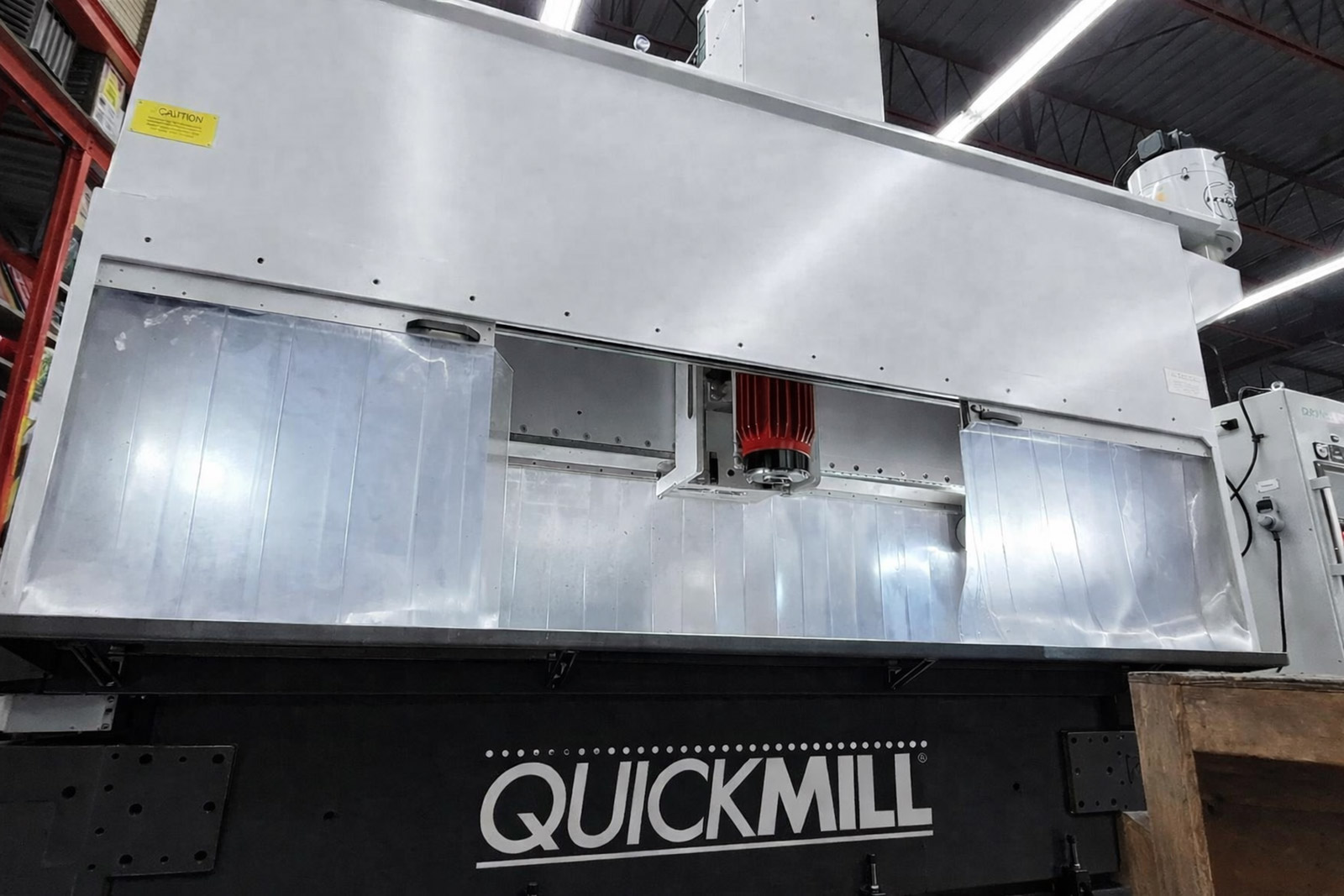

THE INTIMIDATOR GANTRY MACHINING CENTER

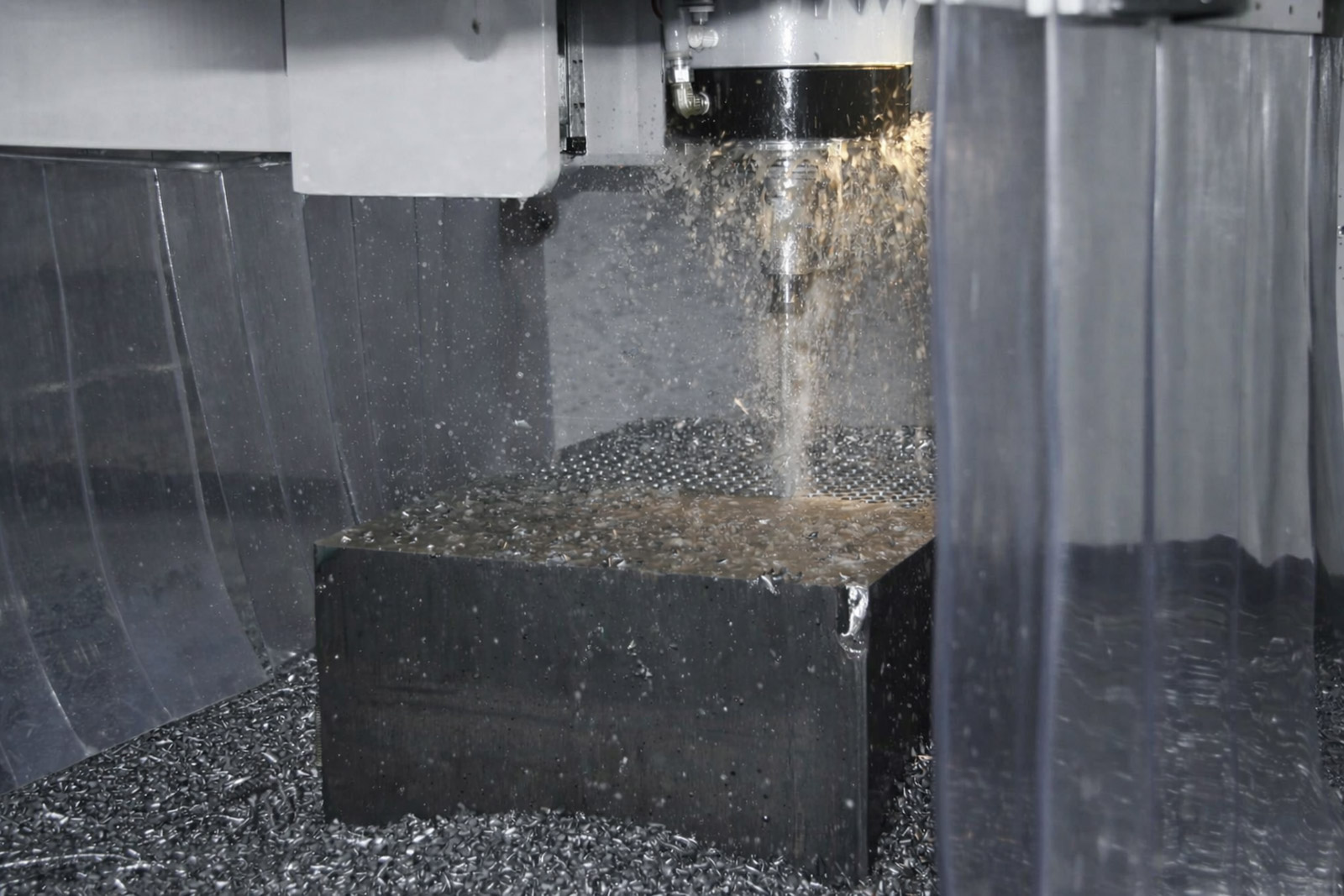

The Intimidator takes large scale hole drilling to the next level with faster production times, higher efficiencies and more workload capabilities. Maximum power and built with a chip removal system to minimize downtime and increase productivity.
- Travel: 96” – 817” X Axis, 36” – 200” Y Axis, 30” Z Axis
- Spindle Speed – 0 – 4,000 rpm
- Main Drive Power 75 hp
- Twin Spindles available
Applications
- Oil & Gas
- Power Transmission
- Job Shop
Specifications
| Capacity | ||
|---|---|---|
| X-axis | 96 - 817" | 2,438 - 20,752 mm |
| Y axis | 36 - 200" | 914 - 5,080 mm |
| Z axis | 30" | 762 mm |
| Bridge gap | 24 - 36" | 610 - 914 mm |
| Spindle | ||
| Speed | 4000 rpm | |
| Power S1 | 75 hp | 56 kW |
| Torque S1 | 230 ft-lb | 312 Nm |
| Taper | CAT50/ISO50 | |
| Type | Direct drive | |
| Feed | ||
| Max Feed (X & Y) up to | 480 ipm | 12 m/min |
| Max Rapid (X & Y) up to | 600 ipm | 15 m/min |
| Max Acceleration | 0.27 g | 2.5 m/s2 |
| Accuracy | ||
| Standard | Per ISO 230-2 | |
| Coolant | ||
| Flood | ✓ | |
| Through Spindle | ✓ | |
| Standard coolant system | 1000 psi | 70 bar |
| Tank capacity | 120 - 418 gal | 454 - 1,582 L |
| Control | ||
| CNC System | Fanuc or Siemens |
Additional power, sizes, features and accessories are available
Quickmill is recognized as a Fanuc Authorized CNC Integrator. We are proud to work with Fanuc America to identify and implement best-in-class practices for CNC integration on our machines.REQUEST A QUOTE
