Eliminator R
Extremely large part machining that is fast and accurate

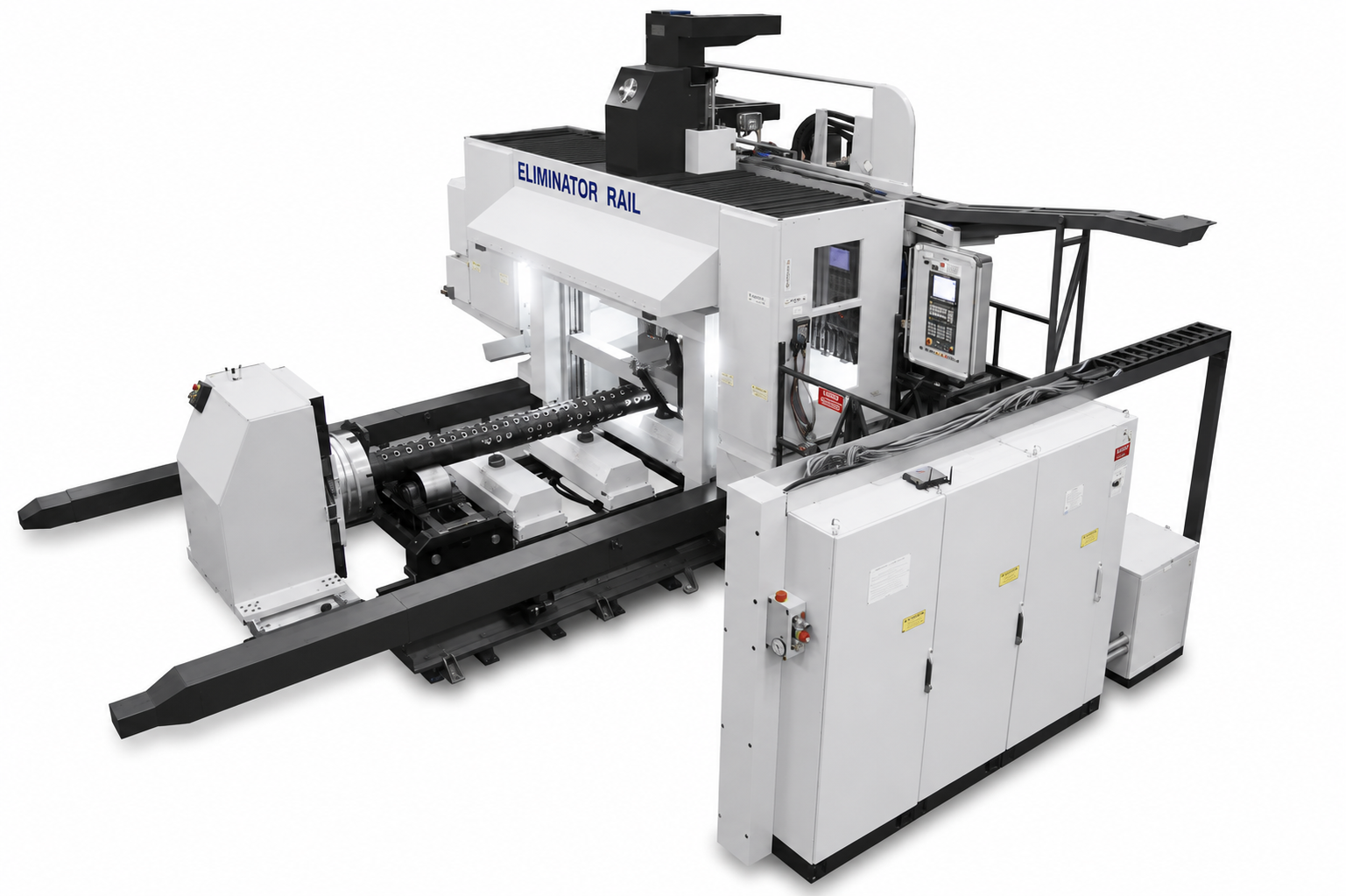

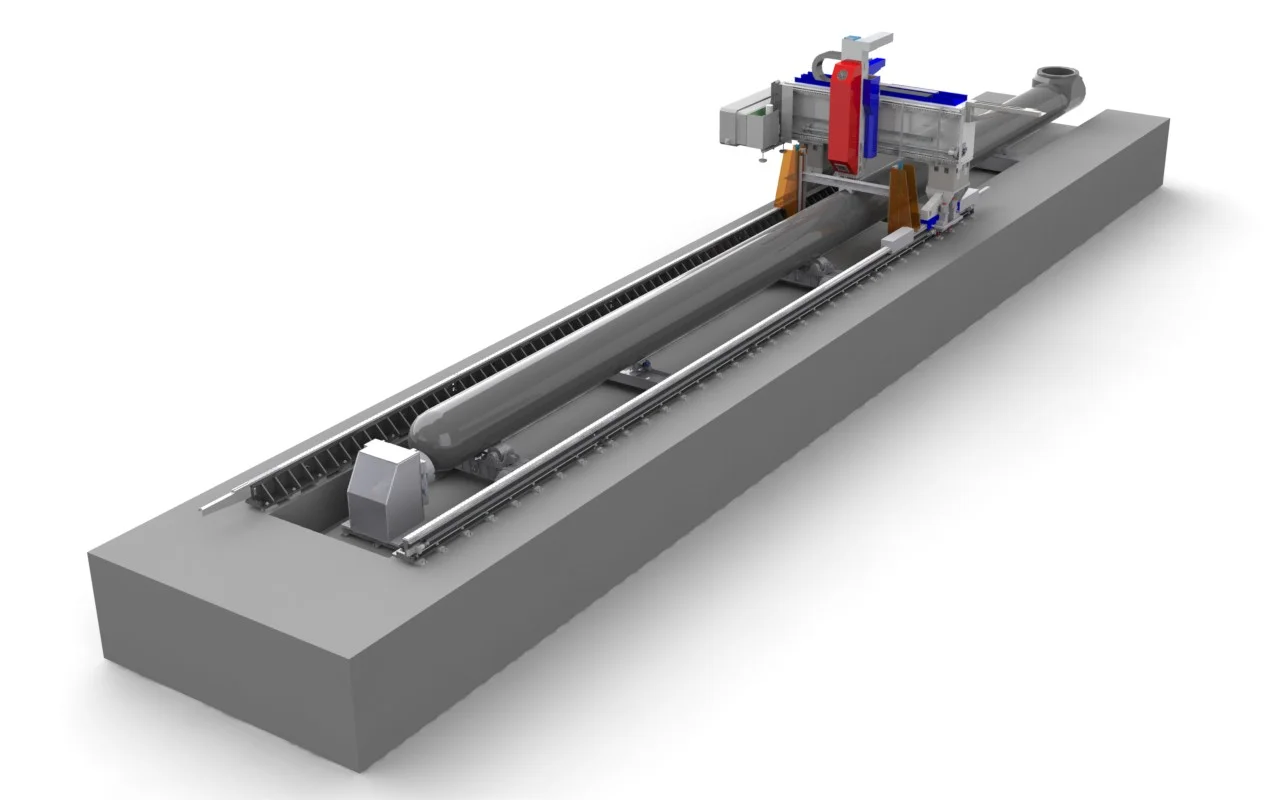

THE ELIMINATOR RAIL MACHINING CENTER
Load, unload and set-up parts at floor level the Eliminator R CNC Machine can tackle extremely large part machining, fast and with accuracy.
- Travel: 157” – 1256” X Axis, 120” – 200” Y Axis, 120” – 200” Y 40” Z Axis
- Spindle Speed – 0 – 6,000 rpm
- Main Drive Power 40/49 hp
- 40 Tool Automatic Tool Changer
Applications

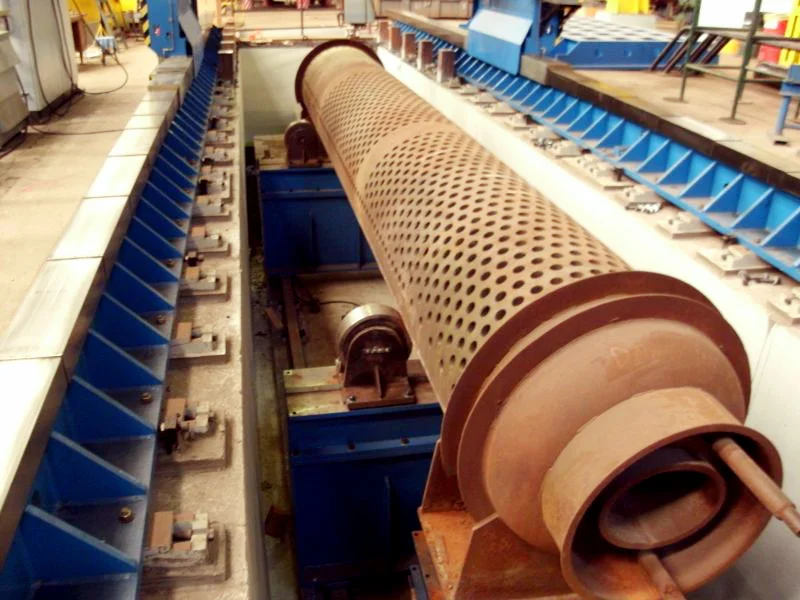

- Power Generation
- Defense
- Marine
- Job Shop
Specifications
| Capacity | ||
|---|---|---|
| X-axis | 157 - 1,256" | 4,000 - 32,000 mm |
| Y axis | 120 - 200" | 3,048 - 5,080 mm |
| Z axis | 40" | 1,016 mm |
| Bridge gap | Per application | |
| Spindle | ||
| Speed | 6,000 rpm | Opt. up to 10,000 |
| Power S1 | 40 hp | 30 kW |
| Torque S1 | 735 ft-lb | 996 Nm |
| Taper | CAT50/ISO50 | |
| Type | 2 spd gearbox | |
| Feed | ||
| Max Feed (X & Y) up to | 720 ipm | 18 m/min |
| Max Rapid (X & Y) up to | 800 ipm | 20 m/min |
| Max Acceleration | 0.315 g | 3 m/s2 |
| Accuracy | ||
| Standard | Per ISO 230-2 | |
| Coolant | ||
| Flood | ✓ | |
| Through Spindle | ✓ | |
| Standard coolant system | 250 psi / 10 gpm | 17 bar / 38 lpm |
| Optional HP System | 1,000 psi / 15 gpm | 70 bar / 60 lpm |
| Tank capacity | Custom | |
| Control | ||
| CNC System | Fanuc or Siemens |
Additional power, sizes, features and accessories are available.
