Eliminator HD
Heavy 3-axis CNC Machining

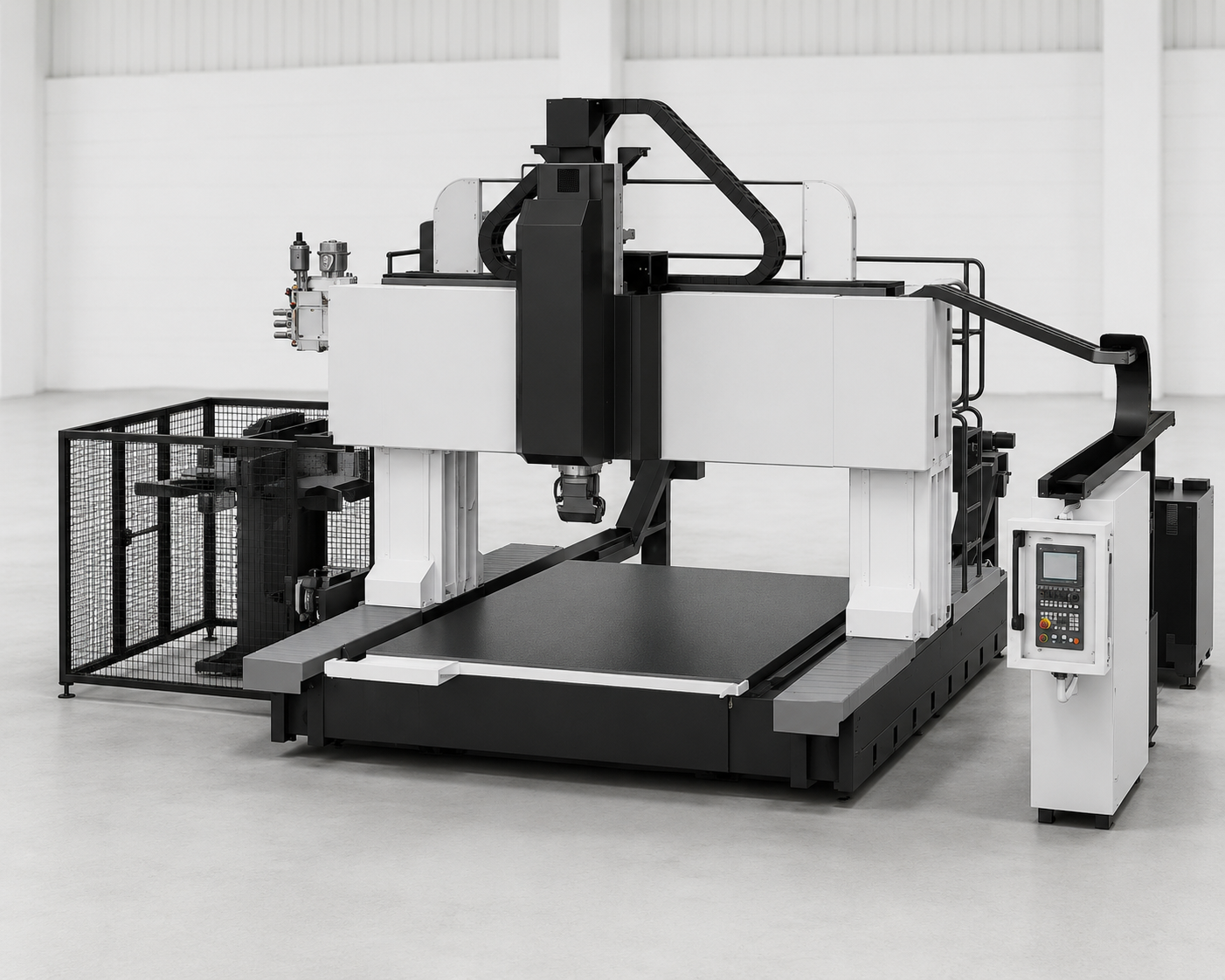

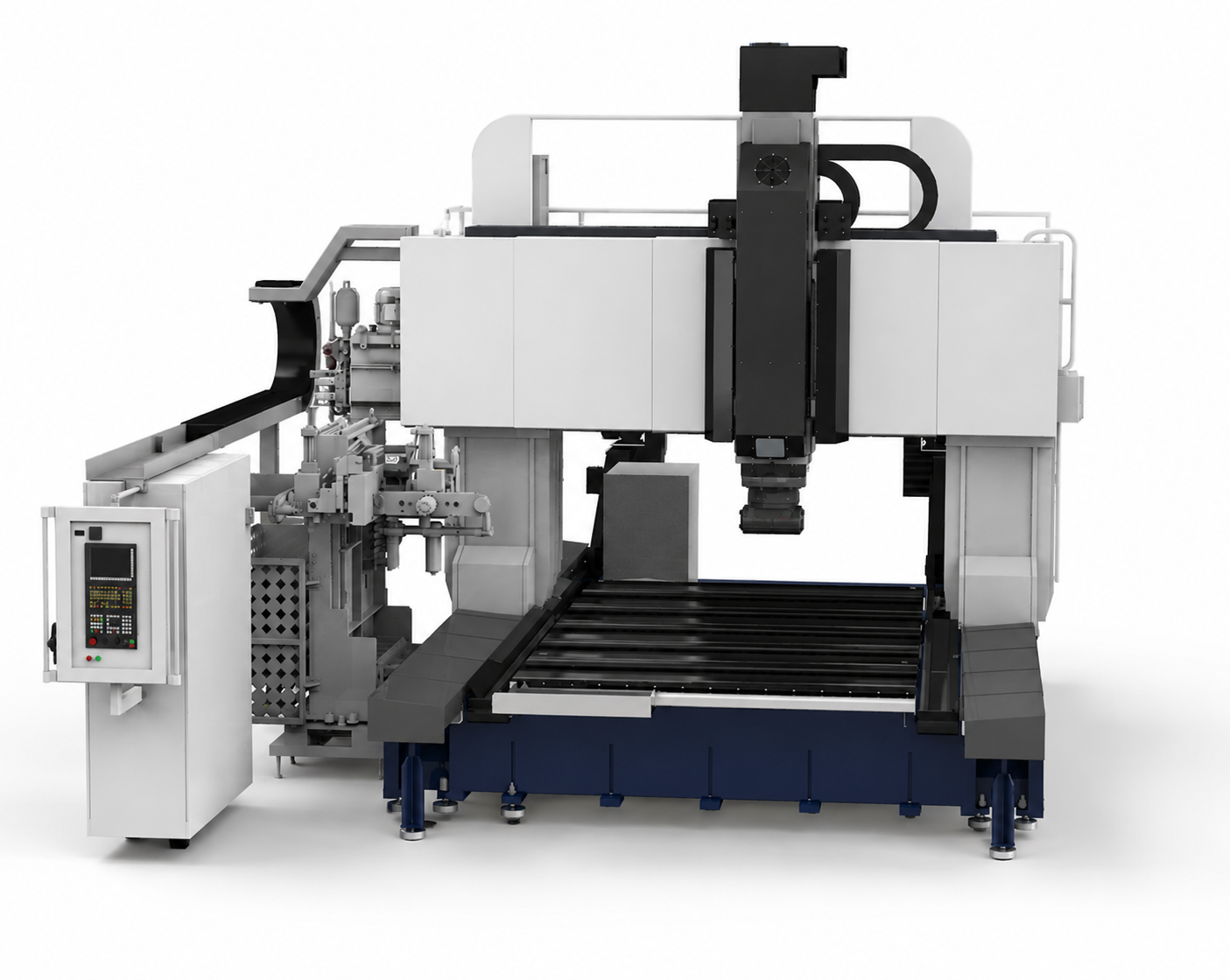

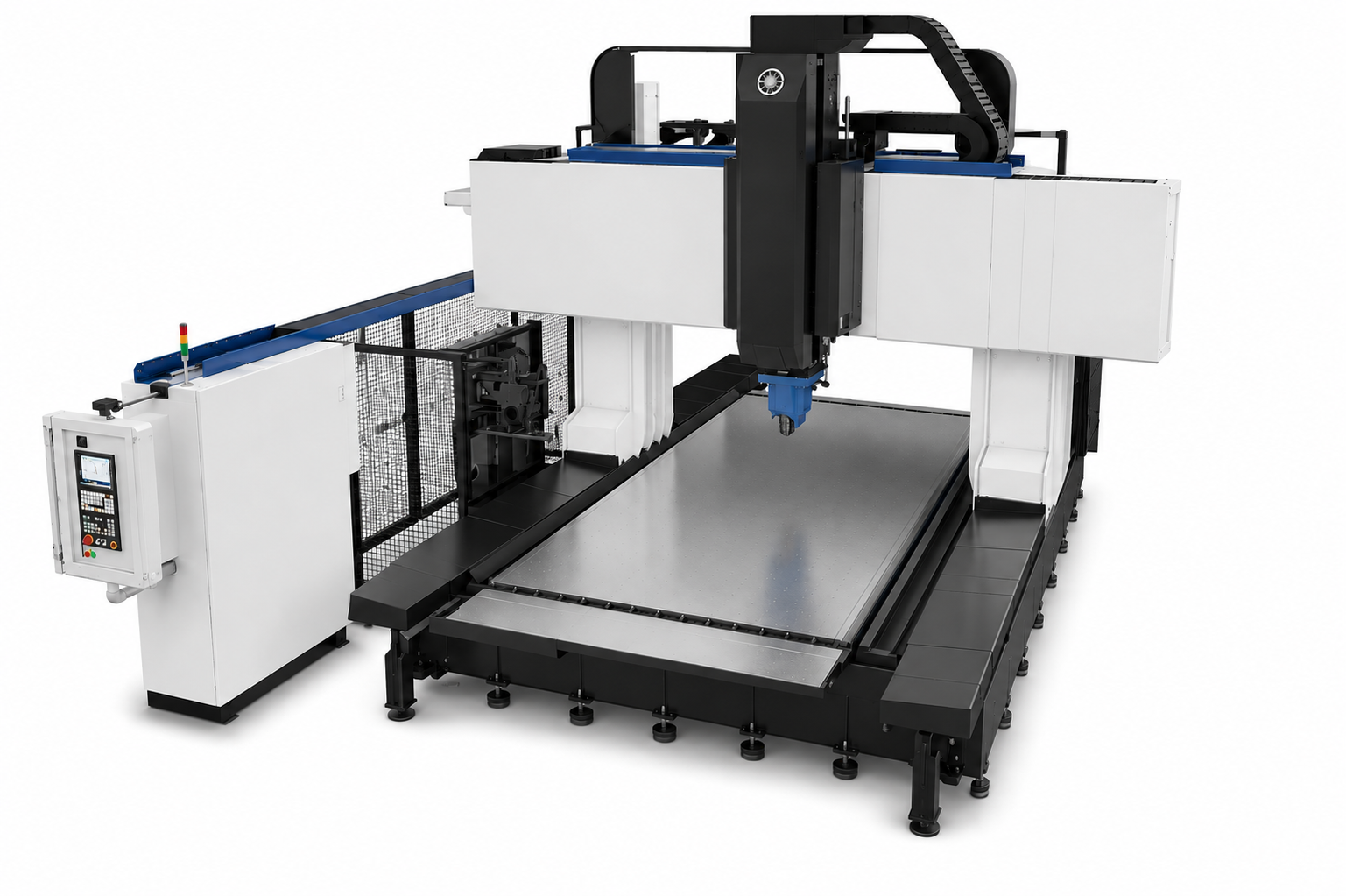

THE NEW ELIMINATOR HD MACHINING CENTER
Designed to machine the largest and toughest parts with ease.The most rigid and versatile series we have created to date, the Eliminator HD can exceed demanding expectations from a variety of industries. Where heavy machining in hard metals is needed with high removal rates and exceptional quality paramount, you will find the Eliminator HD.
- Travel: 180” – 824” X Axis, 60” – 200” Y Axis, 44” Z Axis
- Spindle Speed – 0 – 6,000 rpm
- High speed and High Torque spindles available

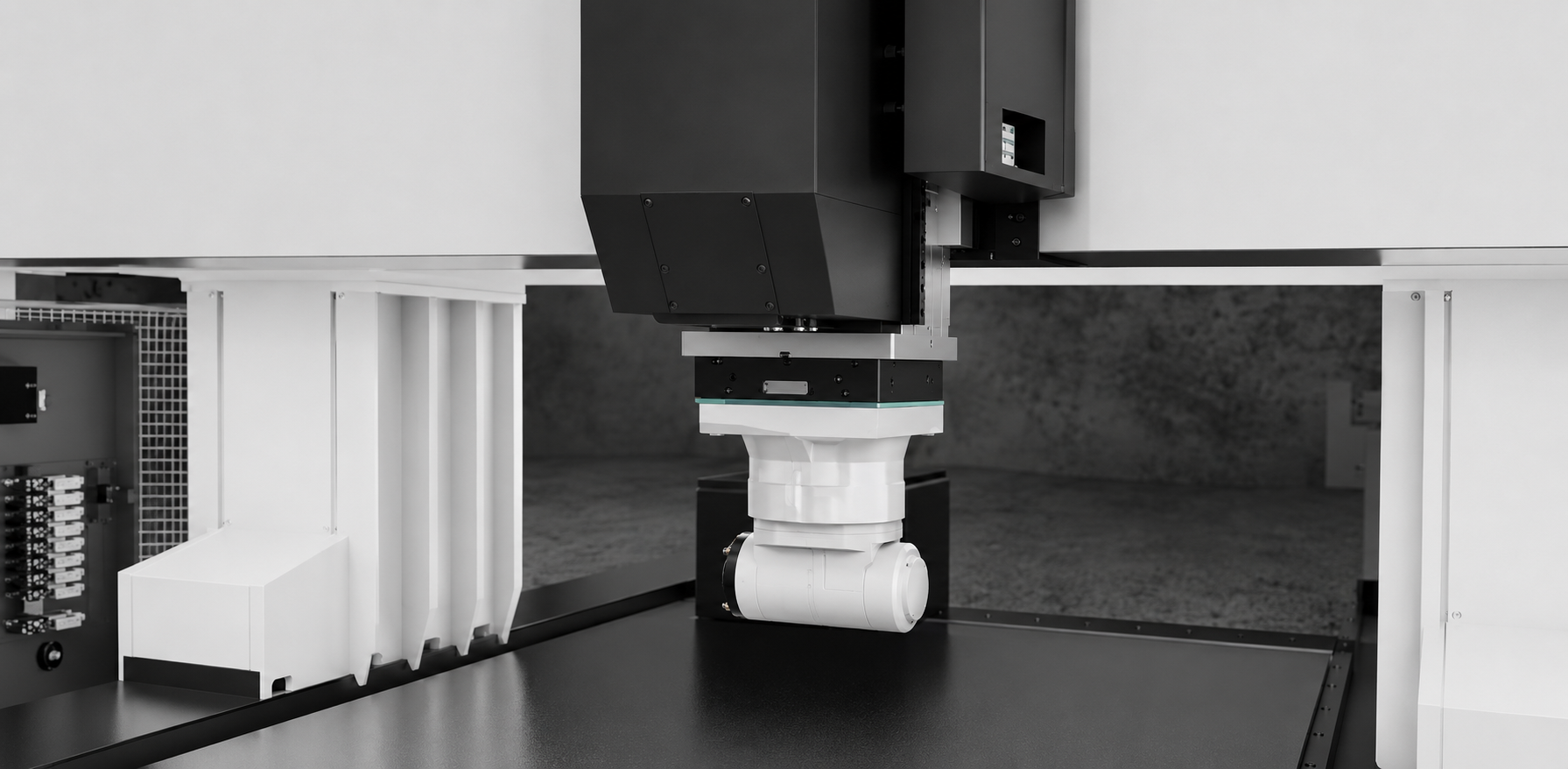

- Heads: Automatic indexing Right Angle, Universal
- Available with Fanuc 31i-B or Siemens 840Dsl Controls
Applications
- Aerospace
- Defense
- Mold & Die
- Marine
- Job Shop
Specifications
| Capacity | ||
|---|---|---|
| X-axis | 180 - 824" | 4,572 - 20,927 mm |
| Y axis | 60-200" | 1,524 - 2,438 mm |
| Z axis | 44" | 1,118 mm |
| Bridge gap | 48 - 60" | 1,219 - 1,524 mm |
| Longer axes strokes available | ✓ | |
| Spindle | ||
| Speed | 6,000 rpm | Opt. up to 24,000 |
| Power S1 | 40 hp | 30 kW |
| Torque S1 | 735 ft-lb | 996 Nm |
| Taper | CAT50/ISO50 | |
| Type | 2 spd gearbox | |
| Feed | ||
| Max Feed (X & Y) up to | 720 ipm | 18 m/min |
| Max Rapid (X & Y) up to | 800 ipm | 20 m/min |
| Max Acceleration | 0.226 g | 2.2 m/s2 |
| Accuracy | ||
| Standard | Per ISO 230-2 | |
| Coolant | ||
| Flood | ✓ | |
| Through Spindle | ✓ | |
| Standard Coolant System | 250 psi / 10 gpm | 17 bar / 38 lpm |
| Optional HP System | 1,000 psi / 15 gpm | 70 bar / 60 lpm |
| Tank capacity | 124 - 418 gal | 468 - 1,582 L |
| Control | ||
| CNC System | Fanuc or Siemens |
Additional power, sizes, features and accessories are available.
